| Wiring Harnesses |
Back to Headlight - Back to Taillight
|
1955-56 |
|||||
| Part | Description | Price | Part | Description | Price |
| 1-34 | 55-56 Parking Light & Lead Wire Assembly |
$32.00 | 9-06 | 5-6-7 Compass Light w/wire | $15.00 |
| 3-24 | 55 Starter Harness V8 automatic |
$45.00 | 9-106 | 5-6 Courtesy Light Harness | $32.00 |
| 3-25 | 55 Starter Harness V8 standard |
$45.00 | 9-25 | 55 Clock Harness | $12.00 |
| 3-26 | 56 Starter Harness V8 automatic |
$45.00 | 9-25A | 56 Clock Harness | $18.00 |
| 3-26A | 56 Starter Harness V8 auto. dual 4bbl |
$45.00 | 9-30 | 55 Glove Box Light | $20.00 |
| 3-27 | 56 Starter Harness V8 standard |
$45.00 | 9-30A | 56-57 Glove Box Light | $20.00 |
| 3-31 | 56 Headlight Generator Harness | $65.00 | 9-117 | 55 Heater Lead Wires | $12.00 |
| 3-114 | 56 Front light Harness w/Internal Regulator |
$75.00 | 9-117A | 55 Deluxe Heater/AC Panel lamp Wire | $6.00 |
| 3-115 | 55-56 Headlight Connection Harness Sockets |
$25.00 | 9-117B | 5-6 Heater Switch to Blower Motor Wire (standard) |
$6.00 |
| 6-30 | 55-56 Backup Light Harness | $30.00 | 9-117C | 5-6 Heater switch to panel wire (standard) |
$6.00 |
| 6-34 | 55 Taillight Wire Harness (HT) |
$100.00 | 9-126 | 55 Underdash Harness | $160.00 |
| 6-35 | 55 Taillight Wire Harness (Sedan) |
$105.00 | 9-126A | 55 Underdash Harness (int. regulator) |
$175.00 |
| 6-34A | 56 Taillight Wire Harness (HT) |
$105.00 | 9-127 | 56 Underdash Harness | $160.00 |
| 6-35A | 56 Taillight Wire Harness (Sedan) |

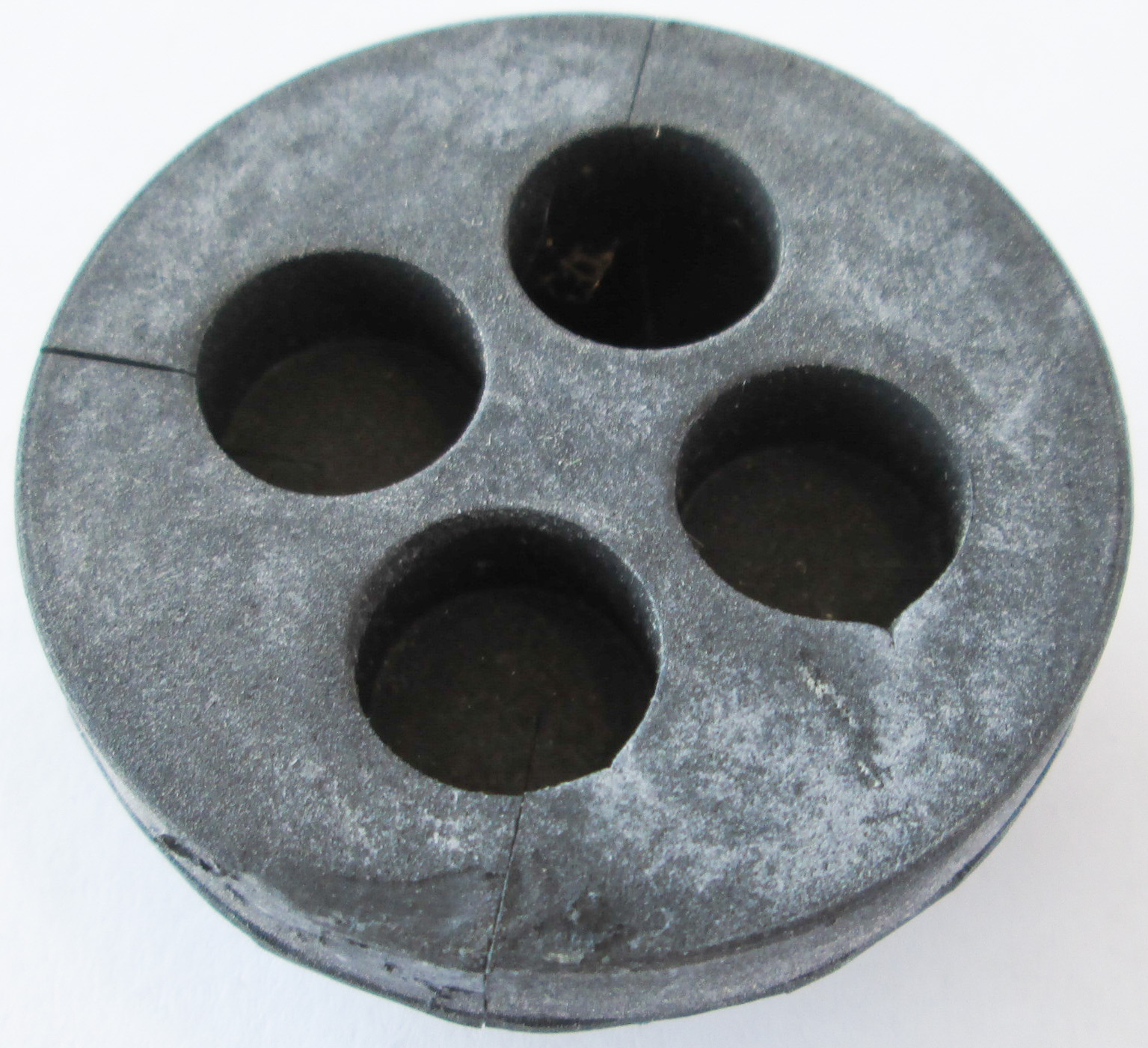

$105.00 | 3-47 | 55 Main Wiring Harness Grommet |
$4.00 |
| 9-130 | 5-6 Complete wiring system (custom application) |

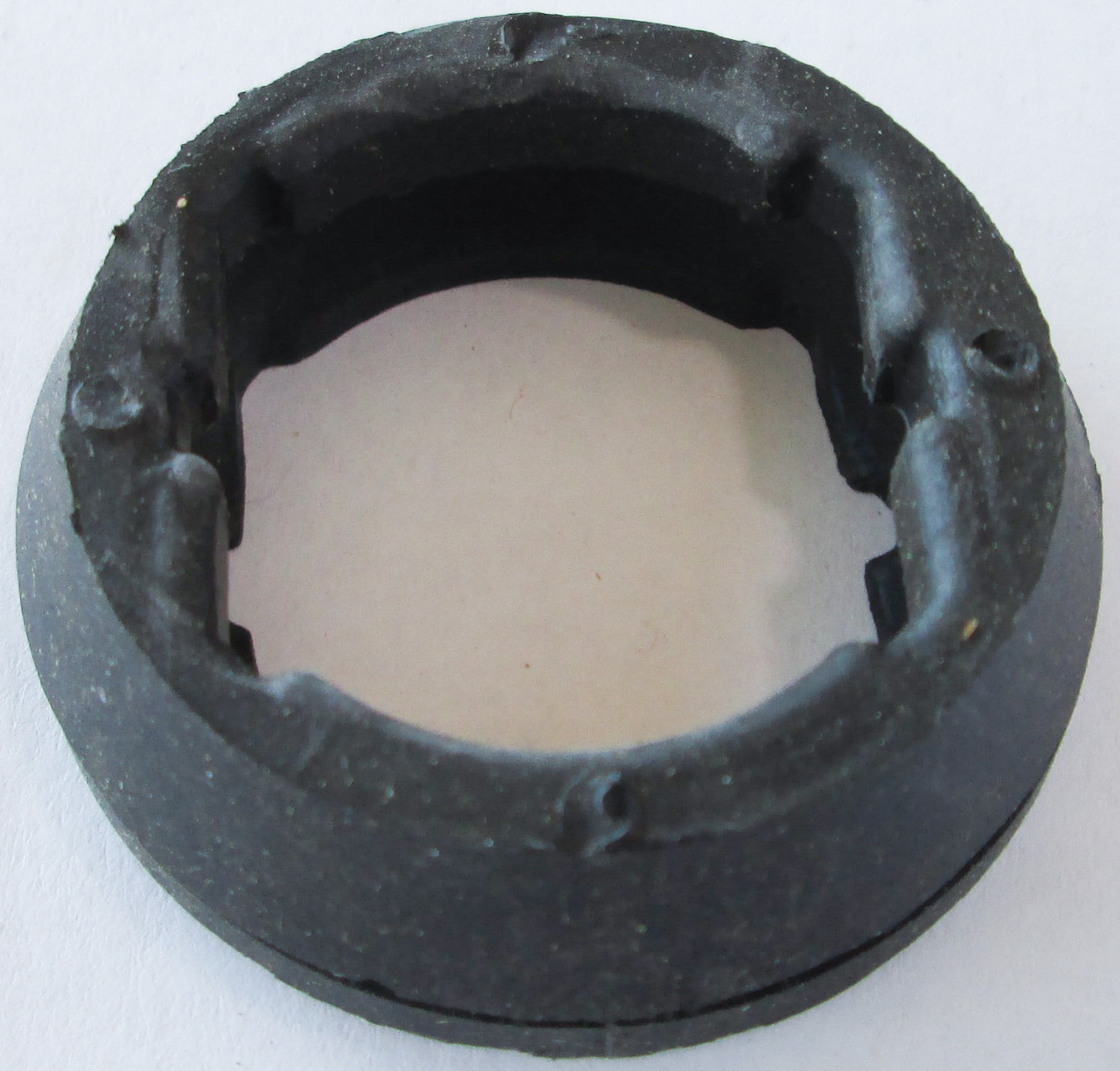

$500.00 | 3-48 | 6-7 Main Wiring Harness Grommet |
$4.00 |
| 6-86 | 56 Taillight Wire Harness Boots (90º) |
$6.00 | |||
|
1957 |
|||||
| Part | Description | Price | Part | Description | Price |
| 9-06 | 5-6-7 Compass Light w/wire | $15.00 | 6-35B | 57 Taillight Wire Harness (Sedan) |
$105.00 |
| 3-28 | 57 Starter Harness V8 automatic |
$45.00 | 9-128 | 57 Underdash Harness | $160.00 |
| 3-28A | 57 Starter Harness V8 auto. with 2x4 |
$45.00 | 9-128A | 57 Underdash Harrness (Non Deluxe) | $160.00 |
| 3-28B | 57 Starter Harness V8 with FI |
$45.00 | 9-131 | 57 Complete wiring system (custom application) |
$500.00 |
| 3-29 | 57 Starter Harness V8 standard |
$45.00 | 9-106A | 57 Courtesy Light Harness | $30.00 |
| 3-30 | 57 Grille Bar Harness | $32.00 | 9-25B | 57 Clock Harness | $12.00 |
| 3-49 | 57 Grille Bar Wiring Harness Grommet |
$3.00 | 9-30A | 56-57 Glove Box Light | $20.00 |
| 3-32 | 57 Headlight Generator Harness | $65.00 | 9-119 | 57 Deluxe Heater Blower Wires | $6.00 |
| 3-113 | 57 Front light Harness w/Internal Regulator |
$75.00 | 10-48A | 57 Powerlead Wire | $10.00 |
| 3-116 | 57 Headlight Connection Harness Sockets |
$25.00 | 3-48 | 6-7 Main Wiring Harness Grommet |
$4.00 |
| 6-30A | 57 Backup Light Harness | $20.00 | 10-54 | 57 BA Convertible Rear Body Harness | $125.00 |
| 6-34B | 57 Taillight Wire Harness (HT) |
$105.00 | |||
